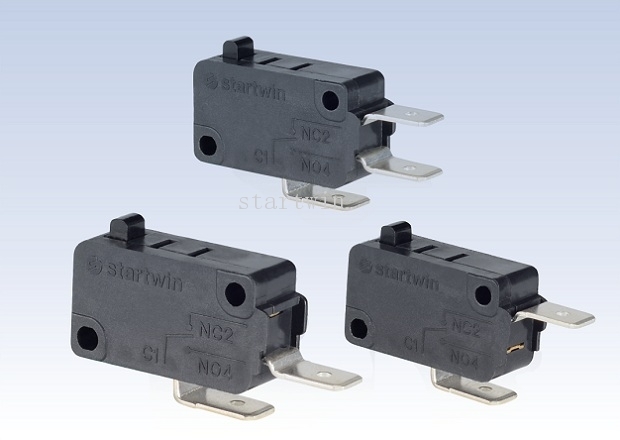

Name：SW12TA-011C.P.Z- Series Micro Switch

Model：SW12TA-011C.P.Z- Series Micro Switch

FEATURES：

SPECIFICATION

Mechanical life: 2,000,000 cycles min；

Contact Rating: 16 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles

10 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles; ENEC 50,000 cycles

Insulation Resistance:＞100MΩ DC500V；

Withstand Voltage:AC1500V 1 minute；

Contact Resistance:＜100mΩ；

Operating Temper.:-25℃ to 85℃；

Operating Force:See Chart

Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃

approximately 3 seconds while applying sol

Description Parameter

Upper Housing: High Temperature PBT (UL94 V-0)

Lower Housing: High Temperature PBT (UL94 V-0)

Actuating Button: High Temperature PBT (UL94 V-0)

Fixed Rod: Brass

Chang Plate: Brass(Plating silver)

NC、NO、COM Terminals: Brass(Plating silver)

Contacts: Silver Alloy or plating Gold

Spring Plate: Bronze

Auxiliary Actuator: Stainless Steel

SPECIFICATION

Mechanical life: 2,000,000 cycles min；

Contact Rating: 15 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles

10 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles; ENEC 50,000 cycles

Insulation Resistance:＞100MΩ DC500V；

Withstand Voltage:AC1500V 1 minute；

Contact Resistance:＜100mΩ；

Operating Temper.:-25℃ to 125℃；

Operating Force:See Chart

Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃

approximately 3 seconds while applying solder

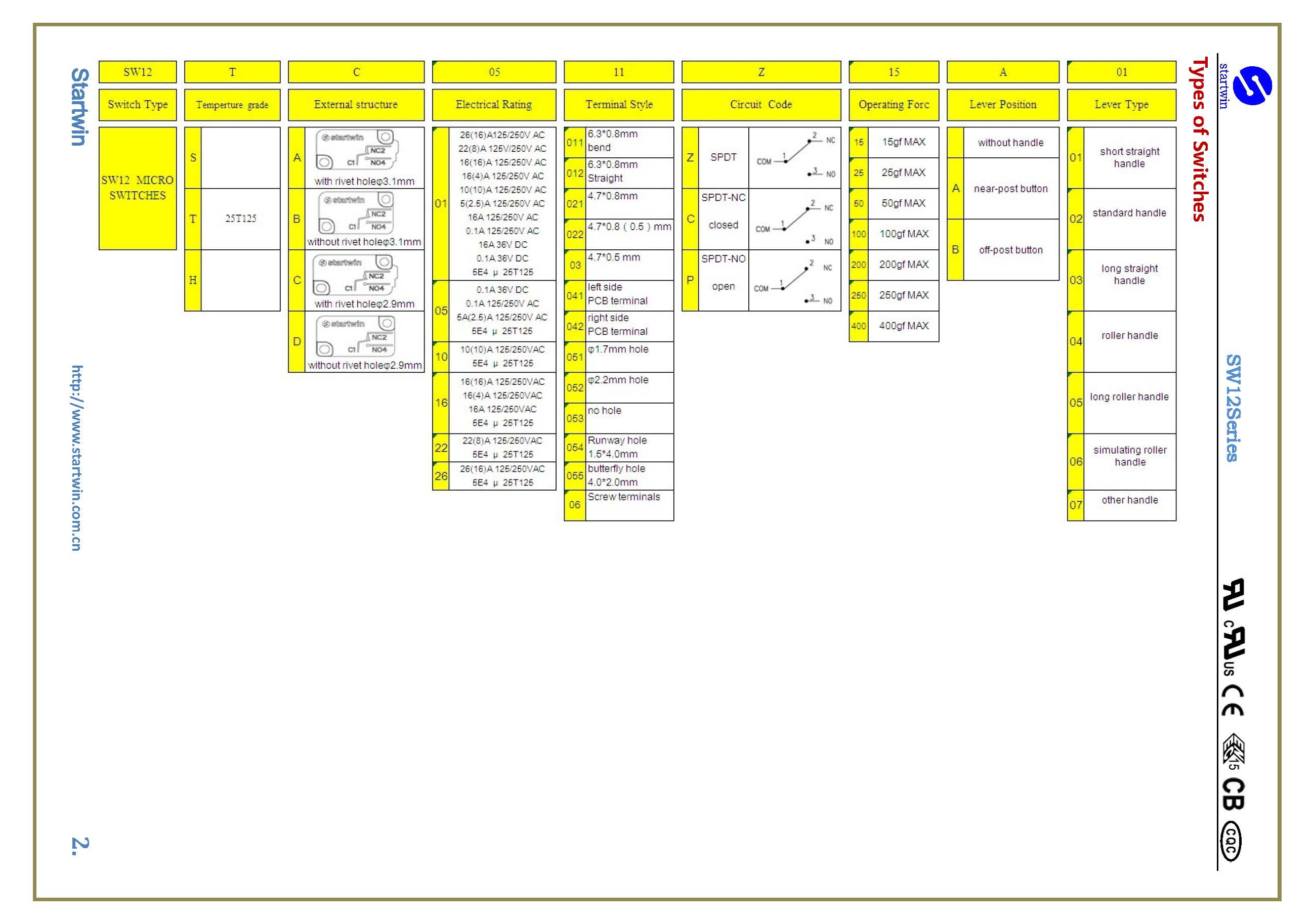

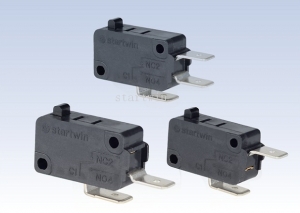

Types of Switches

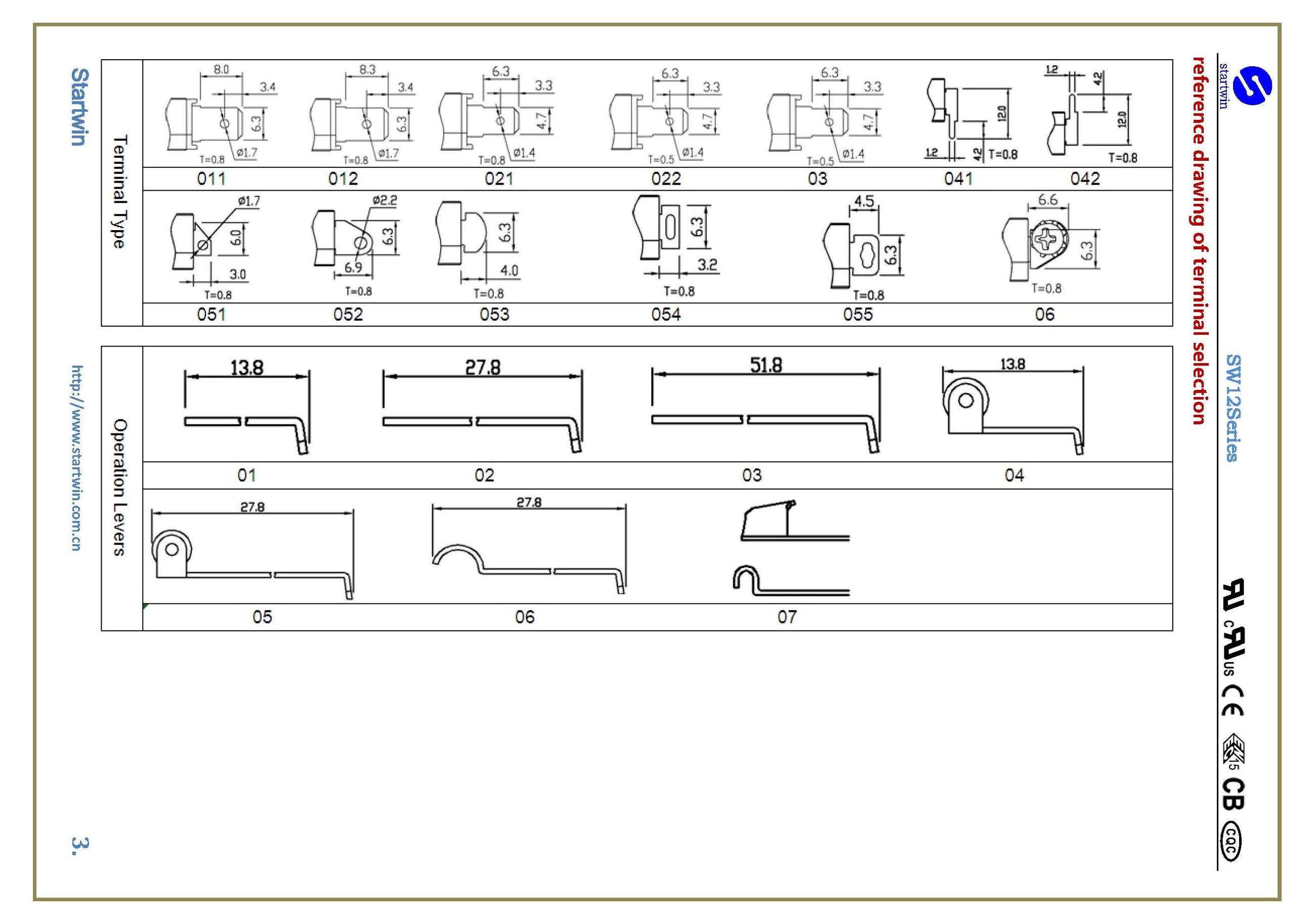

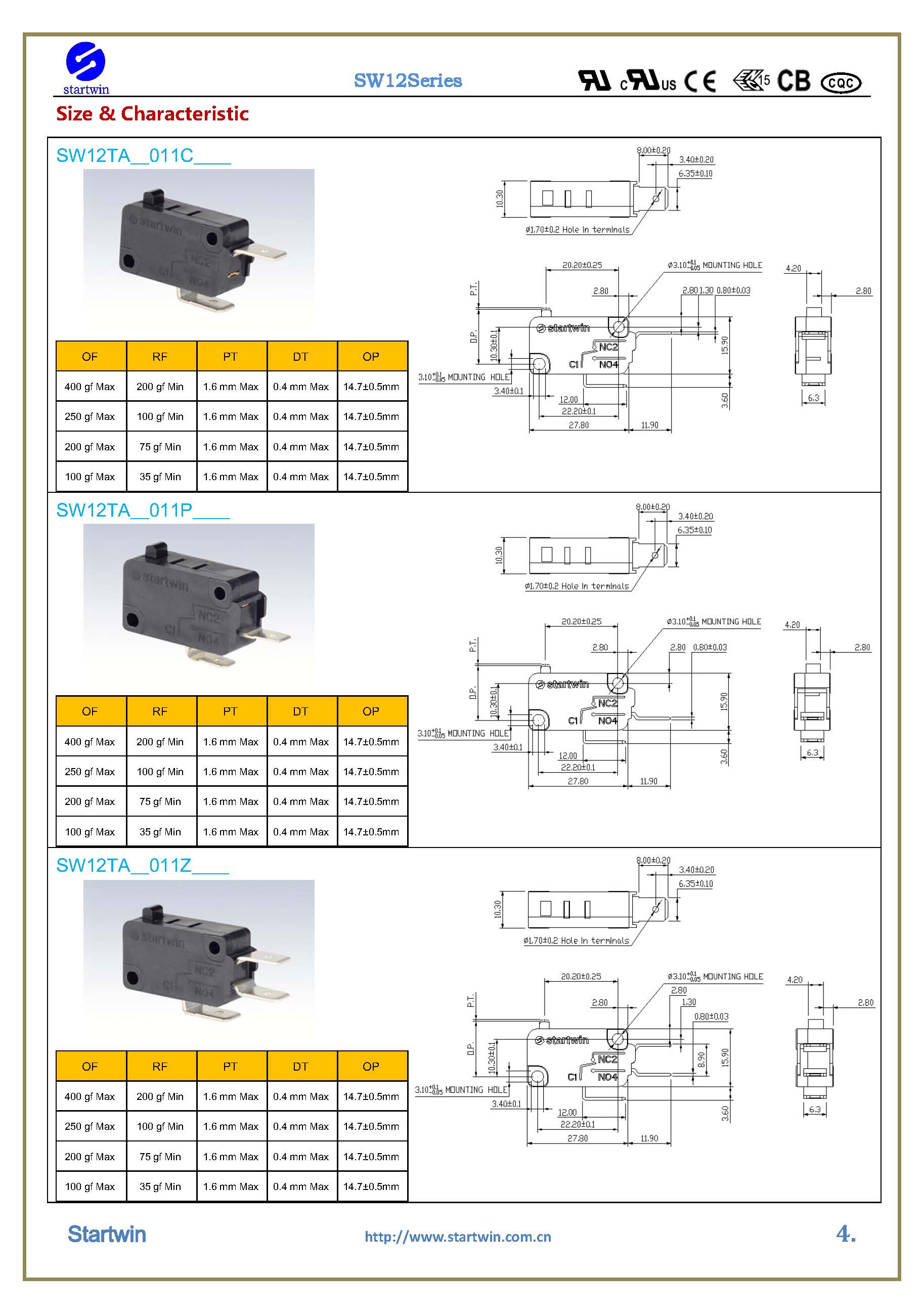

Reference drawing of terminal selection
