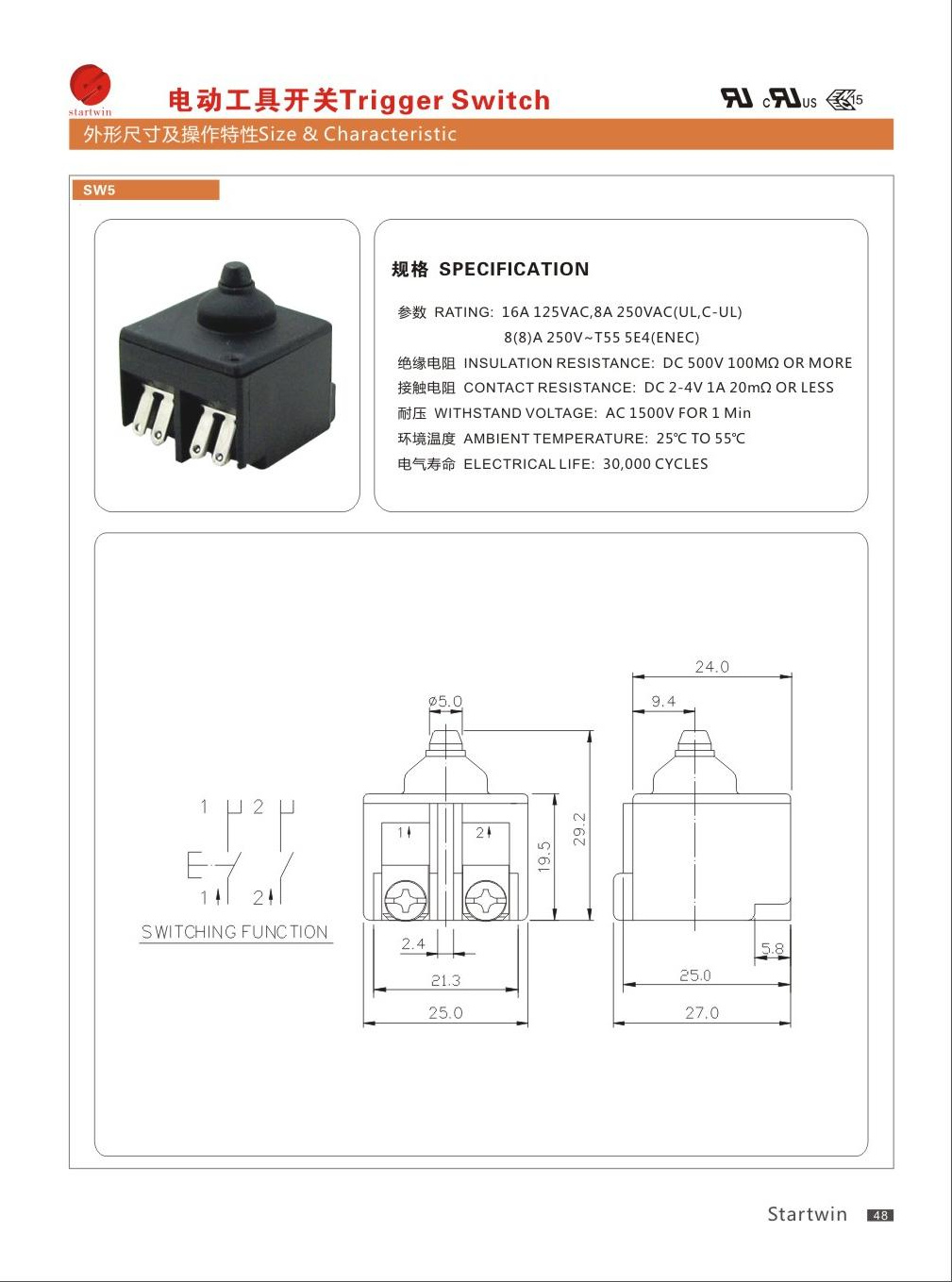

规格SPECIFICATION:
参数RATING :16A 125VAC, 8A 250VAC
8(8)A 250VAC~T55 5E4
绝缘电阻INSULATION RESISTANCE :DC 500V 100MΩ OR MORE
接触电阻CONTACT RESISTANCE :DC 2-4V 1A 20mΩ OR LESS
耐压WITHSTAND VOLTAGE :AC 1500V FOR 1 Min
环境温度AMBIENT TEMPERATURE :-25℃TO 55℃
电气寿命ELECTRICAL LIFE :300,000 CYCLES
